Ali baba consumer electronics 12v 19v 24v battery power bank 20000mah DC USB QC3 portable charger power banks with CE ROHS FCC
| Product name | DC power bank |
| Model No. | P70 |
| Stand battery capacity | 20000mAh 14.4V/5AH(72WH) |
| Product dimension | 142*80*41(mm) |
| N.W | About 550g |
| Display | LED Digital tube |
| Cell type | A grade Lithium battery ICR 18650 |
| Input |
TYPE-C: 5V-12V/18W(MAX) DC:14V-20V/45W(MAX) |
| Output |
USB*2:QC3.0 3.8V-12V/18W(MAX) DC: 5V-15V/5A 16V-24V/80W(MAX) |
| Charge and discharge | Support |
| Circuit protection |
Over voltage protection, over current protection, under voltage protection, over temperature protection, short circuit protection |
| Fully Charging Time (input) |
TYPE-C Charging: 340 Minutes (use 3A Power Adapter) DC Port Charging: About 135 Minutes |
1, High capacity DC power bank 20,000mAh, real capacity;

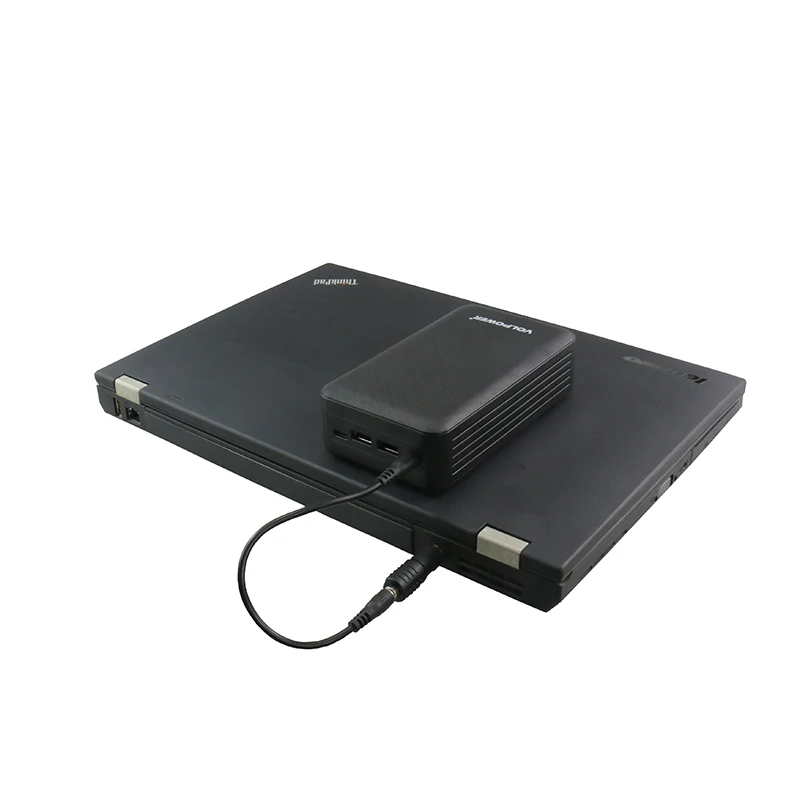

2, Charge for laptop, tablet PC, DC device 5v-24v, USB device;
3, DC 5V-24V output, 80W max, DC voltage 5V, 6V, 9V, 12V, 14V, 15V, 16V, 19V, 20V, 24V output;
4, Dual USB QC3.0 quick charger for mobile phones;
5, High quality power bank with AAA grade lithium battery, circuit protection, software protection, double protection:
- over-voltage protection;
- over-current protection;
- under-voltage protection
- short circuit protection;
- over-temperature protection.

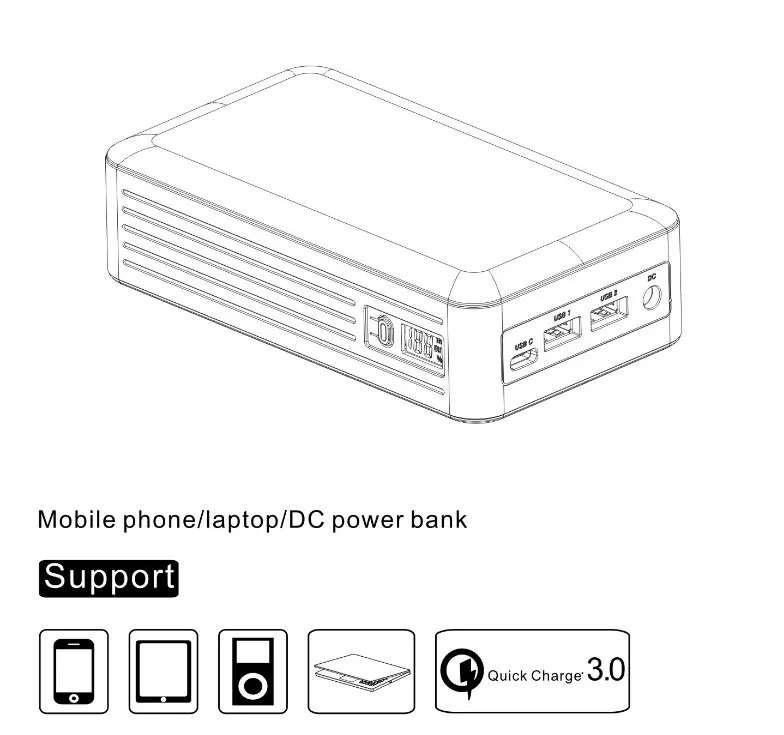

1, Key: Voltage selection, open the port,
2, Display screen: LED display screen;
3, Type-C port: PD input port;
4, QC3.0 quick charge output;
5, QC3.0 quick charge output;
6, DC input/output bidirectional port;
7, DC indicator light.
Key Function Instruction
- Shortly press the button to light the LED screen, then click the button again to open the DC output, This time, there will have “OUT” symbol on the LED screen.
- When power bank without output, double-click the button to display the current DC setup voltage, When power bank with output, double-click the button to display the current input and output power.
- Long press the button for more than 3 seconds to enter the voltage selection mode, the voltage display flashing, short press the button to select the appropriate output voltage.
- DC port supports 5-24V any output voltage. Current standard voltage included: 5V-6V-9V-12V-14V-15V-16V-19V-20V-24V.
- USB*2 supports QC3.0 output synchronously and independently, typical output voltage and current: 5V/3A, 9V/2A, 12V/1.5A, (support BC1.2, Apple, Samsung protocol, Support Qualcomm QC2.0 and QC3.0, support Hua Wei fast charge protocol FCP, support Samsung fast charge protocol AFC).

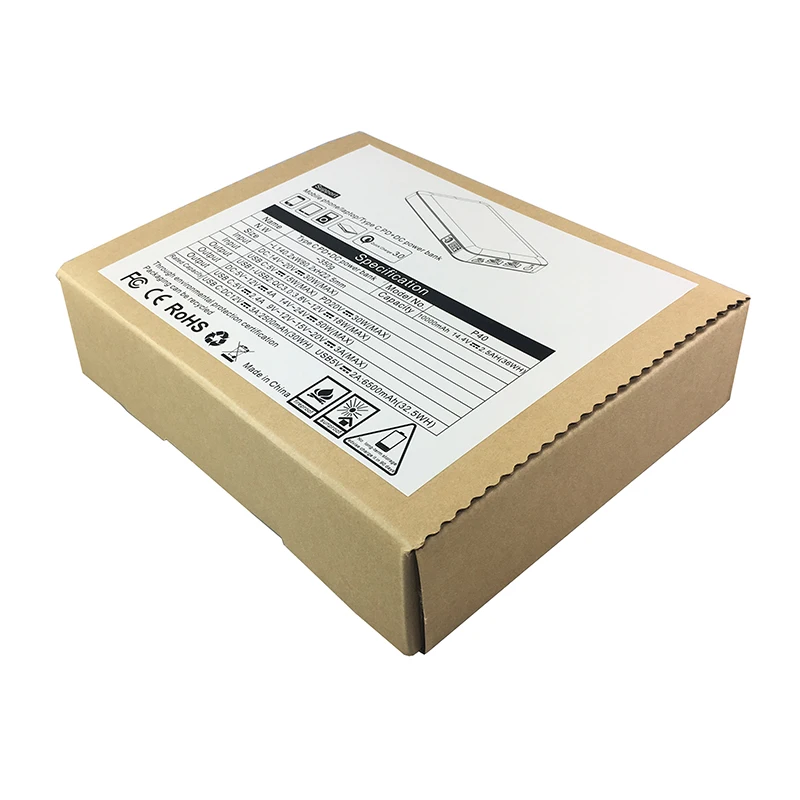

Packing List:
1, P70 Power Bank*1PC
2, DC cable*1PC
3, USB to TYPE-C cable*1PC
4, Use Manual&Warranty Card*1PC
5, Notebook connectors*1 Set (Optional)
6, Type-C to Type-C cable *1 pieces (Optional)
Optionla laptop power tips;
